Features:
This product is suitable for the following users:
1. Work environment with strong electricity and strong interference
Some circuits contain strong electricity, strong interference (such as high voltage, inverter, motor drive, etc.) environment,
When it comes to connecting with a computer, it must be isolated to ensure the computer and personal safety.
2. Noise sensitive area
Everyone knows that computers are a big source of noise. In the noise sensitive field, we can isolate the USB interface through this device.
Such as high-precision USB data acquisition system, HIFI sound system.
3. USB debugging device
For example, various USB interface JTAG/SWD emulators, ISP/ASP/IAP/ICP downloaders, etc.
When you are unable to connect during the debugging process and the simulation is abnormal, you can use the USB isolator to try to improve.
4. Various industrial control USB devices
In industrial environments, USB devices often crash, such as USB mouse, keyboard, USB to serial port and other communication devices.
USB isolators reduce the chance of crashes and damage to these devices in industrial environments.
Sometimes it is necessary to extend the USB cable, the USB isolator can act as a very good USB repeater,
and can also isolate the ground pressure difference between upstream and downstream devices.
5. Other common USB peripherals, such as mouse, keyboard, USB sound card, USB flash drive, printer, digital camera, USB hub (HUB), USB camera.
Tested supported devices:
Full speed equipment:
USB flash drive, digital camera, card reader, mobile hard disk, U shield, USB hub, AVRJTAG, AVRISP, AVRISPMKII, S-Lab, JET51, J-Link,
FET430UIF, PICKIT2, XDS100, LPC-Link, ICD2, USB to serial port (FT232, CP2102, PL2303, CH341 chips).
Tested unsupported devices USB wireless network card, some USB3.0 USB flash drive.

Parameters:
The onboard output power of this product is Jinsheng B0505S power 1W. When your USB device's working current is >180mA, you can use USB double-head cable to supply power.
This product supports full speed devices, but does not support pure high speed devices (USB2.0). Most USB devices are backward compatible and can be used.

Specifcations:
Compatible with USB2.0
ADUM3160 isolation voltage: 2500V
Power module isolation voltage: 1500V
Support USB full speed 12Mbps does not support pure high speed equipment
Support USB control transfer, batch transfer, interrupt transfer, sync/isochronous transfer
Power supply: taken from the computer host USB port
Free drive, more convenient to use
Operating environment: -40 ° C to 85 ° C

Package Includes:

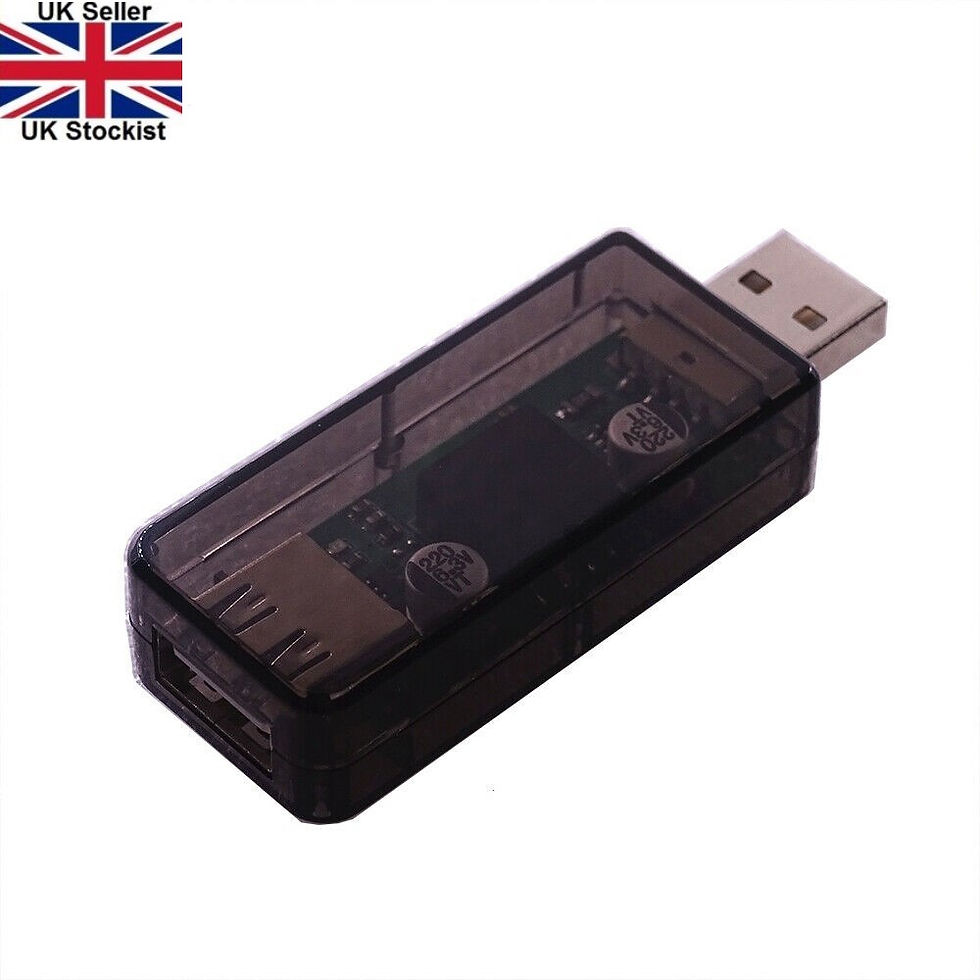

1 x ADuM3160 Isolator
