Description:
This is a 2.42 inch OLED display module of 128x64 resolution in which the emissive electroluminescent layer is a film of organic compound that emits light in response to an electric current.
Working without backlight, the OLED display module could give out light by itself.
In low ambient light conditions such as a dark room, an OLED screen can achieve a higher contrast ratio than an LCD.
OLED display module also has a much faster response time than an LCD.
The display with small dimension is suitable for MP3, function cellphone, smart health device, etc.
The seventh pin CS signal is leaded by default; If you do not need it, you can solder R18, then CS signal is directly grounded.
You can use SPI or IIC, and the default interface is SPI (R17 is soldered, R15, R13 are not soldered); change interface by soldering or desoldering R15, R17, R13(SPI: R17, IIC: R15, R13)
Product Introduction:1.Size:7.5*4.5cm
2.Resolution:128*64pixel
3.Color: Blue/Green/Yellow/White
SPI Interface Definition:
1.GND:power ground
2.VCC:power positive
3.SCL:clock wire
4.SDA:data wire
5.RES:reset wire
6.DC:data/command
7.CS:chip selection

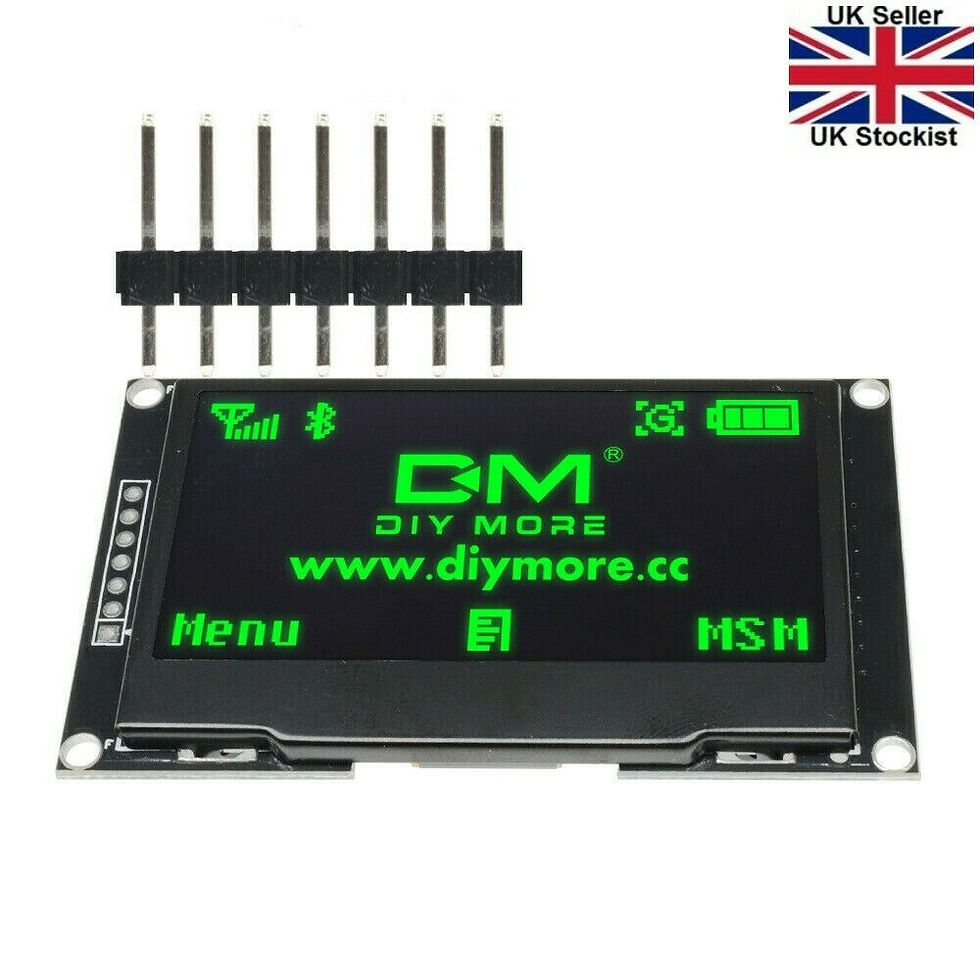

2.42" inch LCD Display OLED RGB SSD1309 12864 SPI Serial Port for Arduino C51
